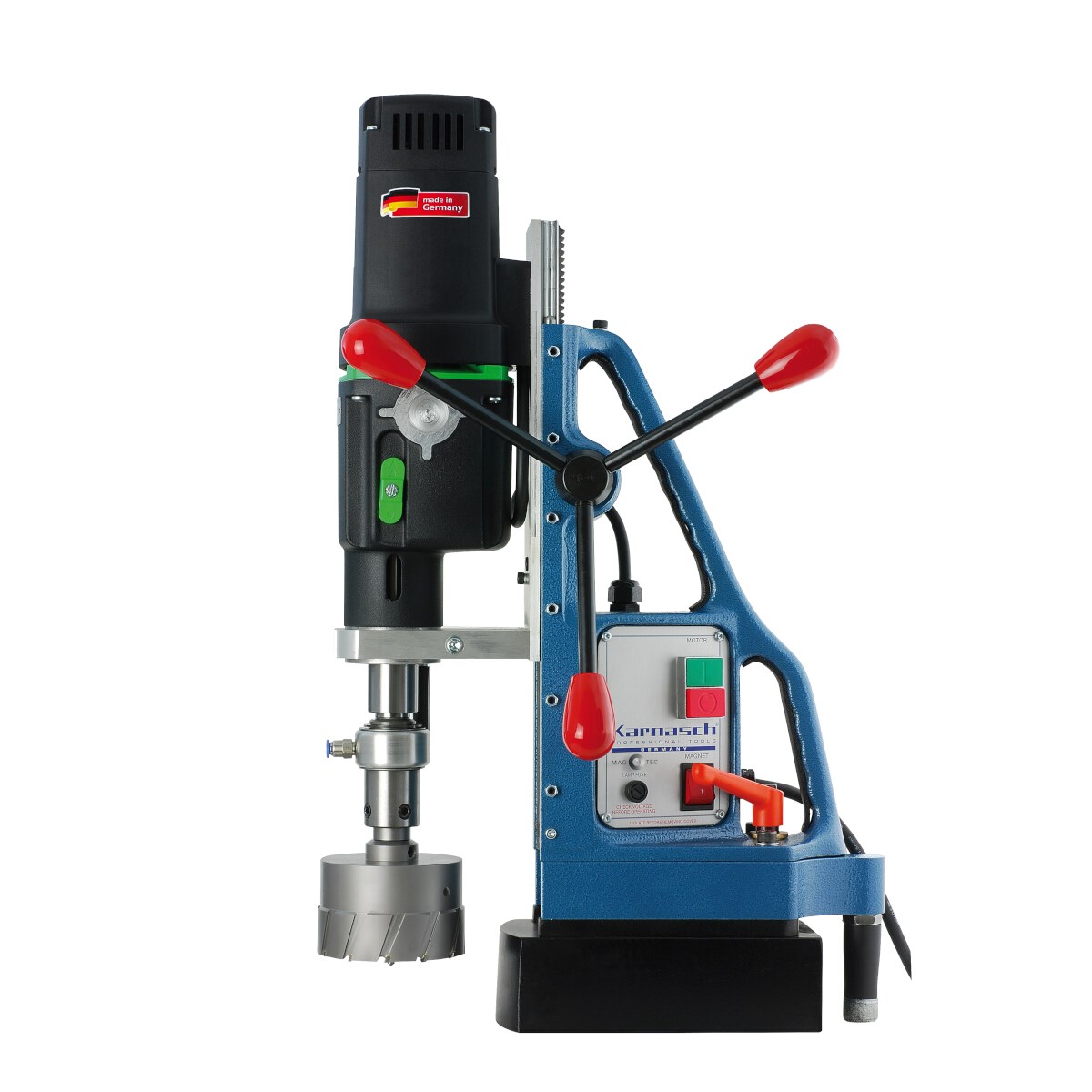

KAS100

Advantages of New "HEAVY-DUTY" System over machines with outdated dovetail systems.

• Up to 10 times better stability.
• Extremely tight tolerances of the slide through the round Twin Rail system.
• The slide has no contact with the main body of the machine. The whole construction is
  connected only by the highly precise and extremely stable rail system.
  • Reduced friction / less wear
  • Low maintenance / better reliability

Result:

• Improved cutter life
• Reduced cutter breakage
• Improved hole tolerances
• Improved hole surface quality
• Up to 110 mm cutting depth possible already with small machines

THE NEW MAG-TEC SENSOR:

The sensor detects how well the magnet keeps the machine on the ground.

• It is directly connected to the engine.
• If the sensor is illuminating "RED" , the ground is dirty (rust, varnish residues, chips), the material is thinner than 6 mm or the feed rate is to high.
• The machine does not have a safe stand. The engine does not start or turns off.
• If the sensor is illuminating "GREEN", the magnetic holding force is optimal and the use of the machine is safe.

Core drilling Diameter 12 - 100 mm

Twist drilling Diameter 3 - 32 mm

Countersinking Diameter 10 - 55 mm

Reaming Diameter 6 - 32 mm
